Letter

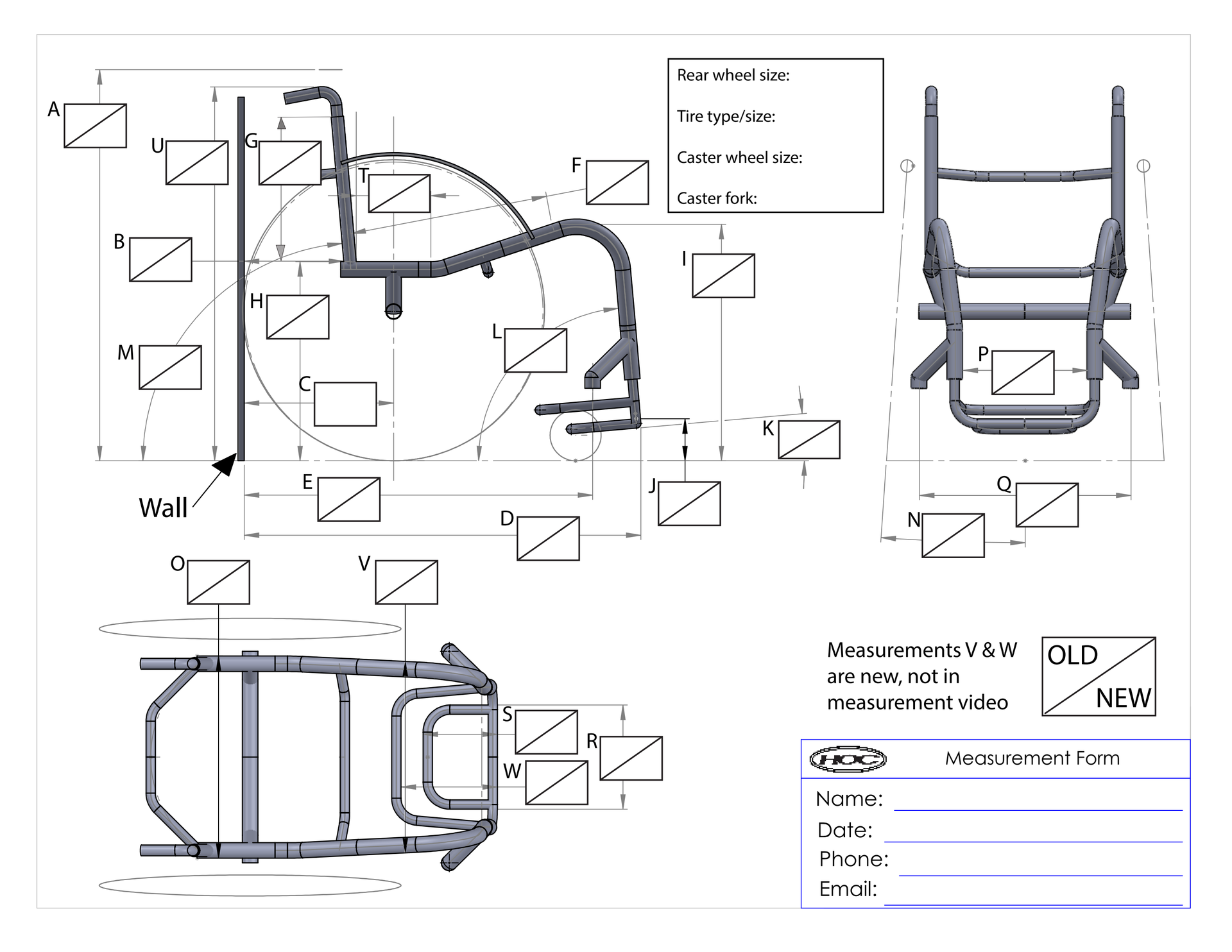

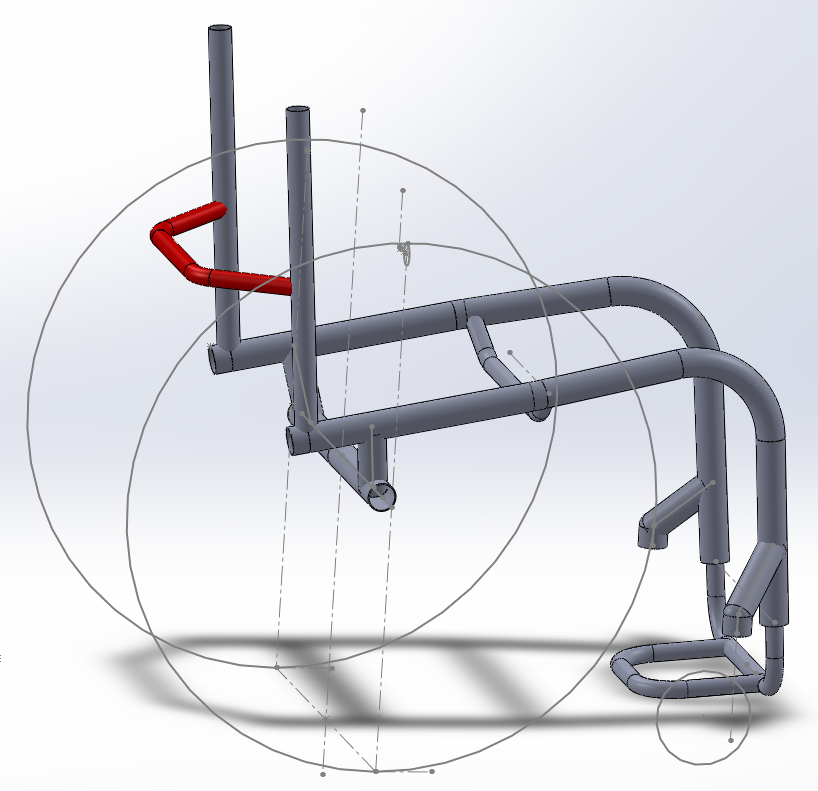

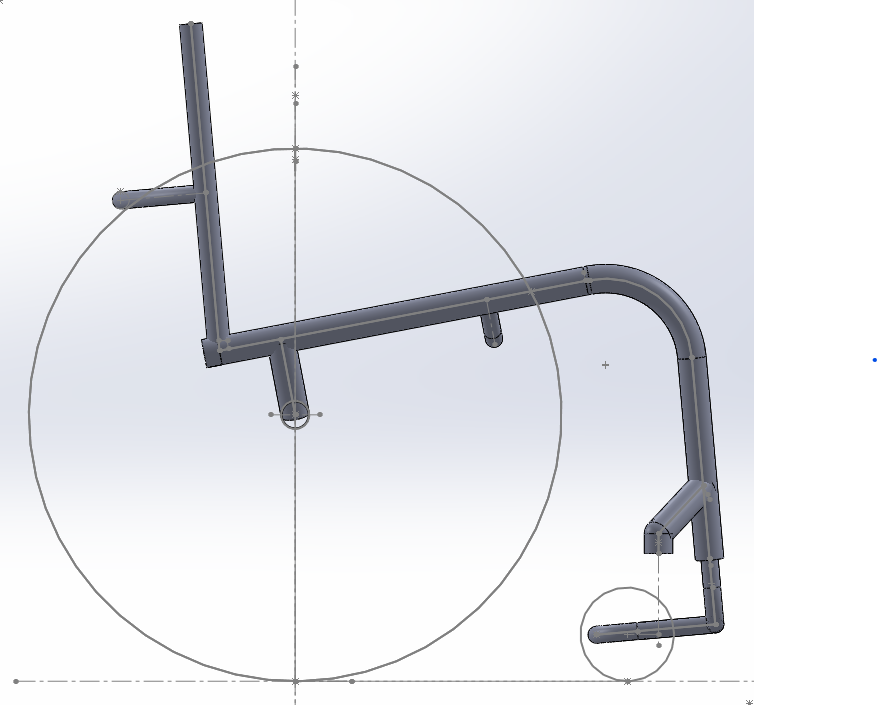

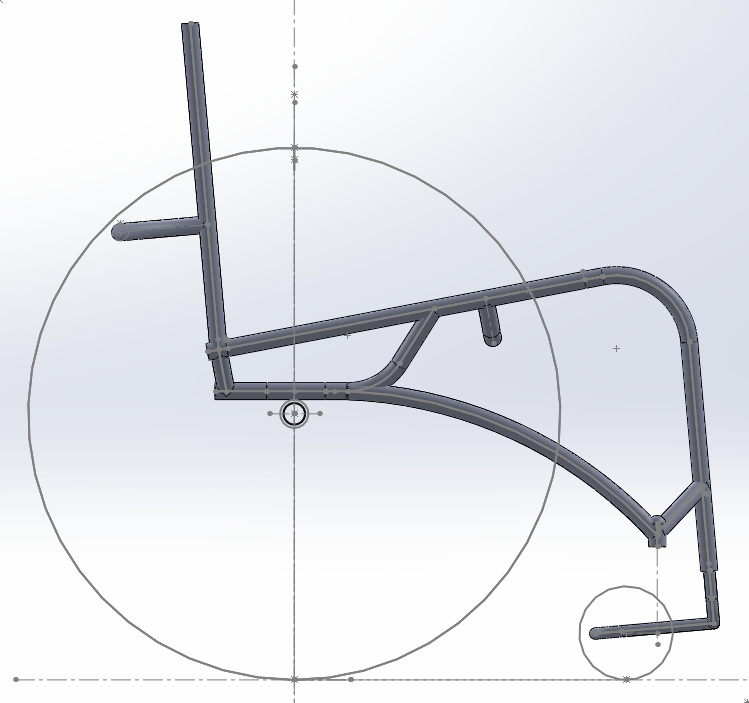

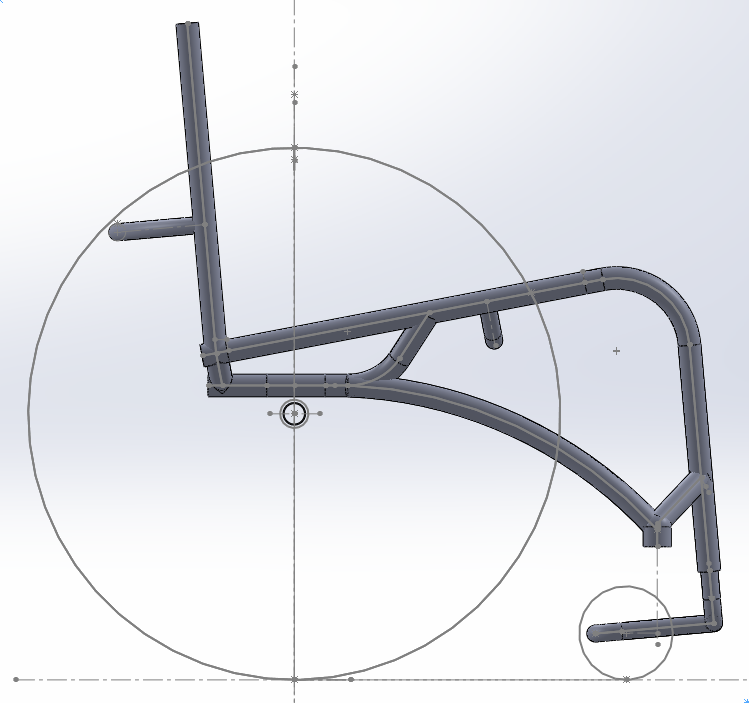

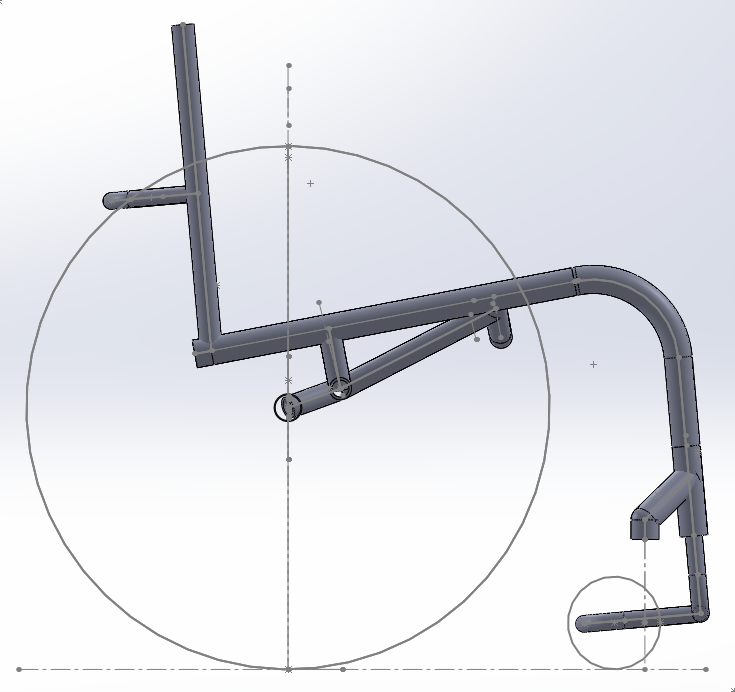

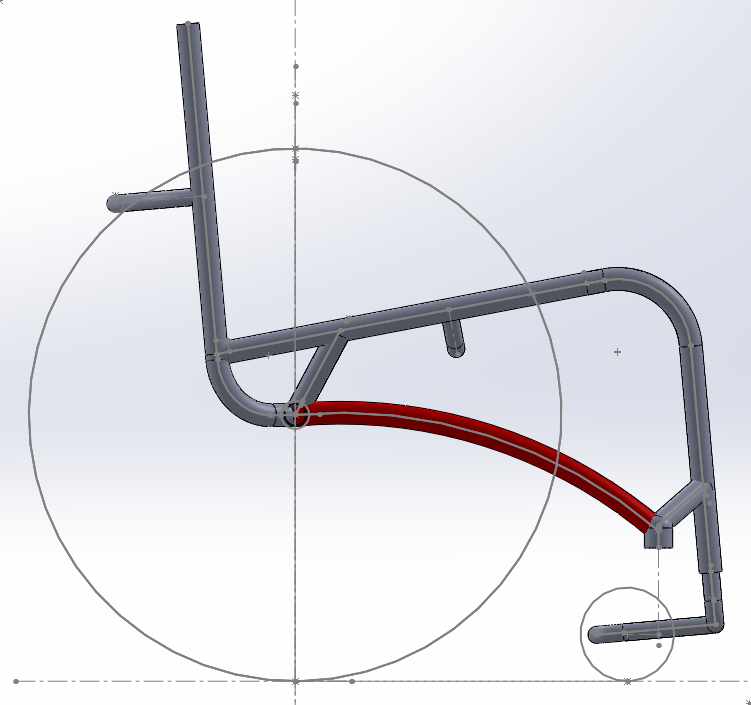

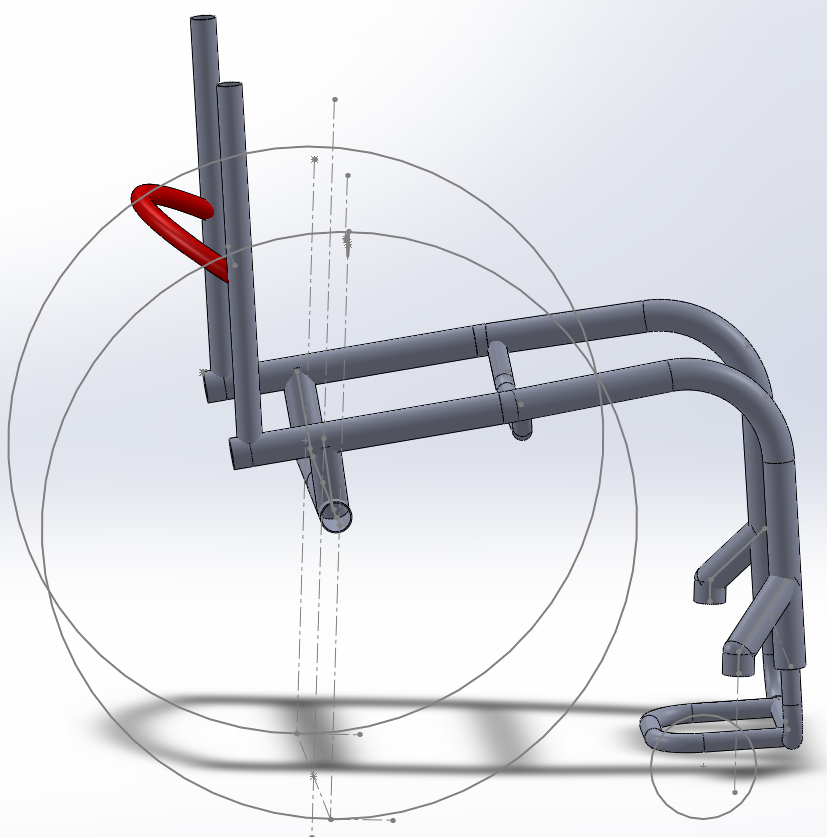

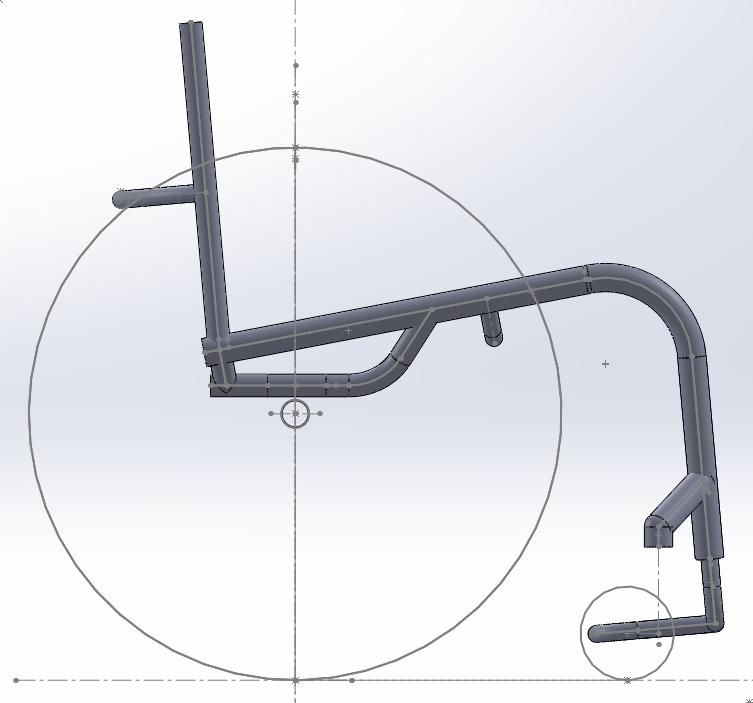

What to Measure
Old
New
A
Ground to top of back upholstery or rigid backrest.
B
Wall to back of back post at the bottom where it meets the seat tube or frame rails.
C
Wall to center of rear wheel, usually the center of the quick release axle.
D
Overall chair length from wall to front of footrest.
E
Wall to center of caster housings.
F
Seat pan depth from back of seat pan to front of seat pan.
G

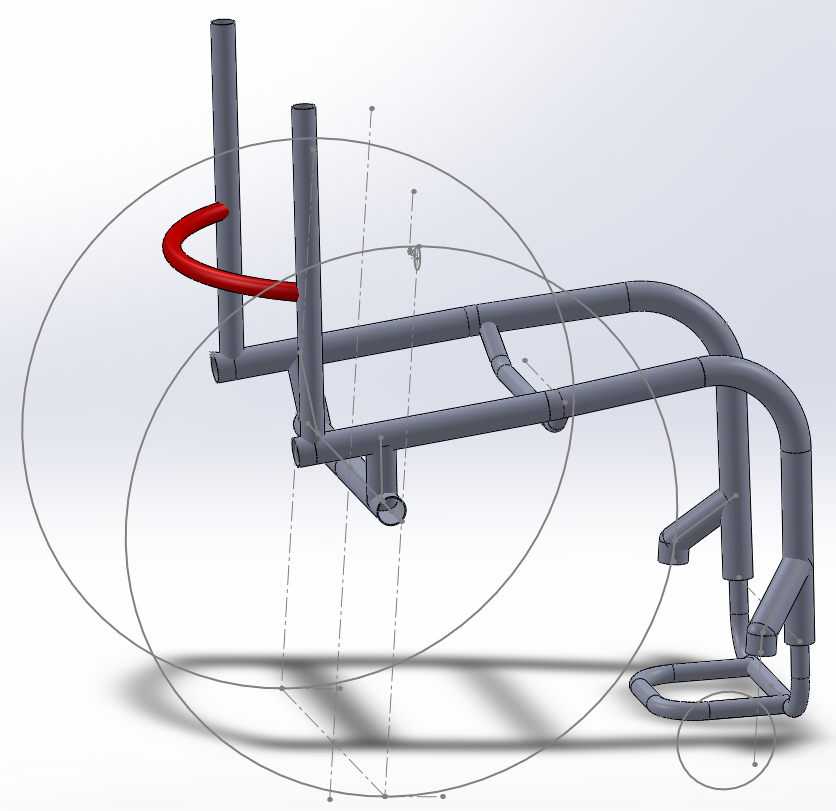

Back post height from the seat to the top.
H
Rear seat height from ground to back of seat sling.
I
Front seat height from ground to front of seat sling.
J
Footrest height from ground to top of footplate at the front of the footrest.
K
Footrest angle.
L

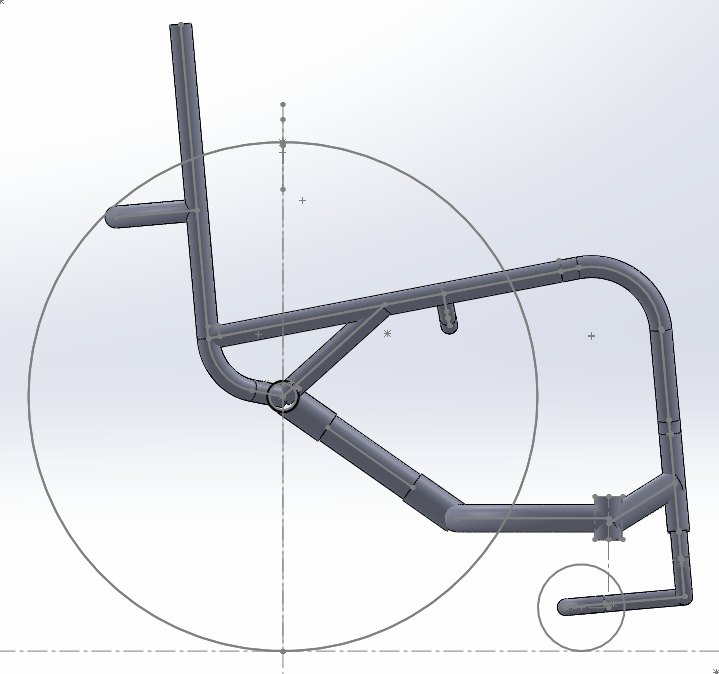

Front frame angle.
M
Back post angle. If using a rigid back, also measure the backrest angle.
N
Camber angle of the wheels.
O
Seat width, inside clothing guard to inside clothing guard or outside frame tube to outside frame tube.
P
Front frame width, inside tube to inside tube where the footrest inserts.
Q
Caster width from center of caster housing to center of caster housing.
R
Footrest width.
S
Footrest depth from the back of footrest to the front.
T

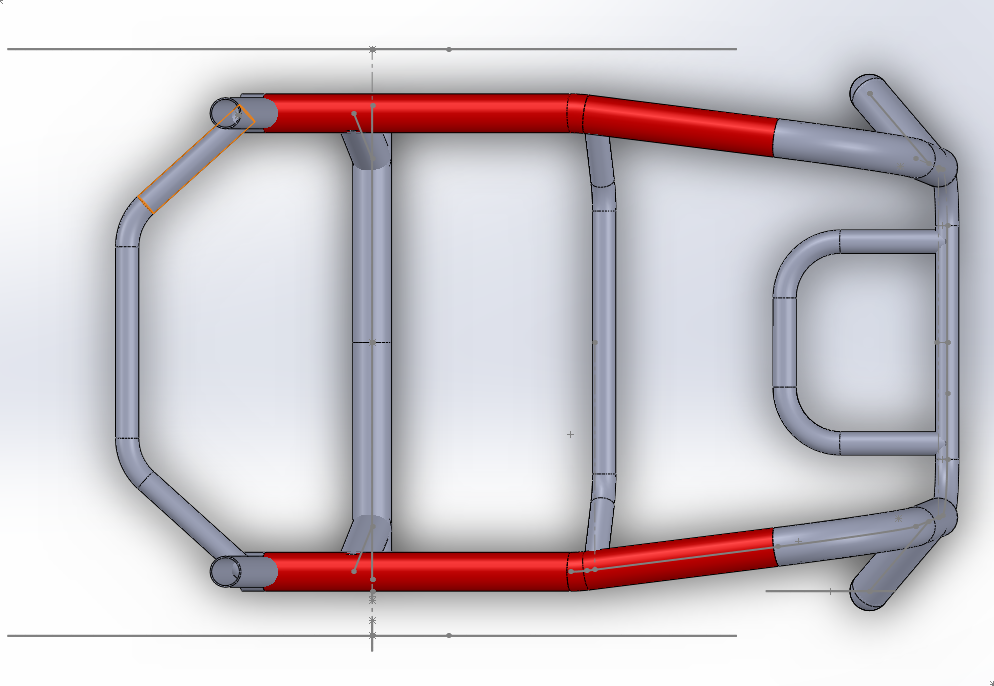

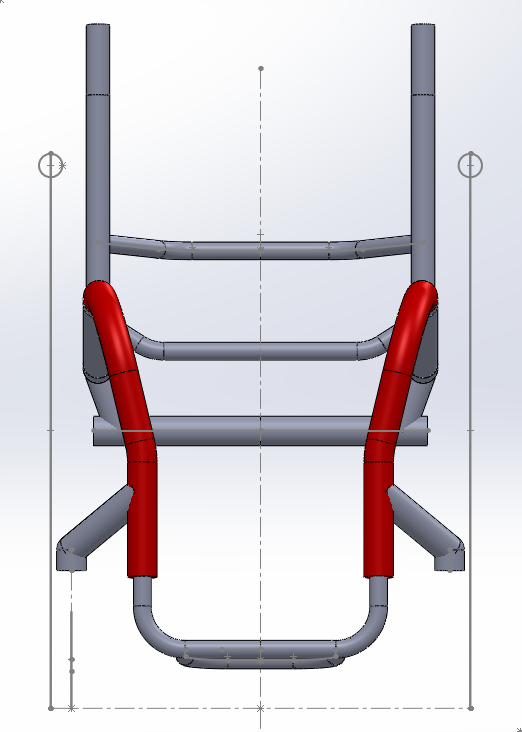

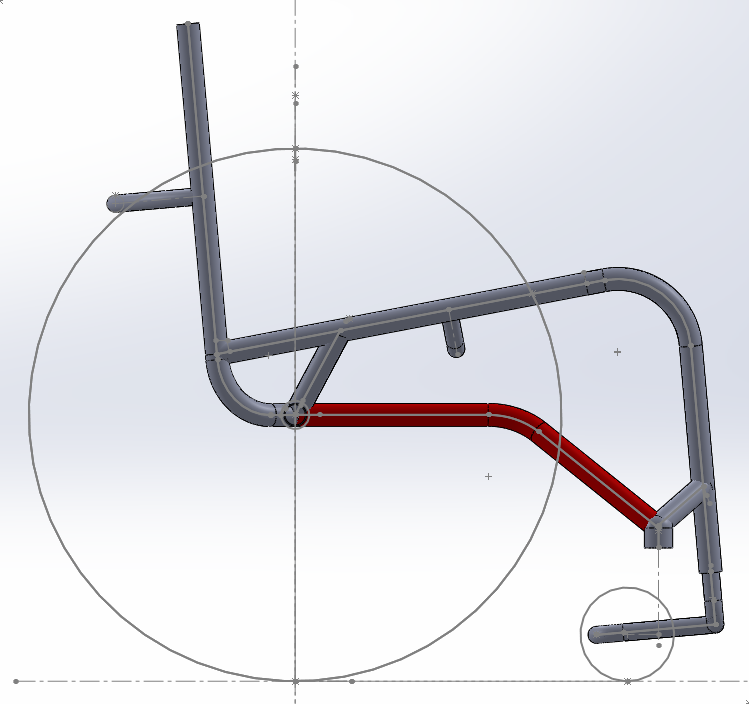

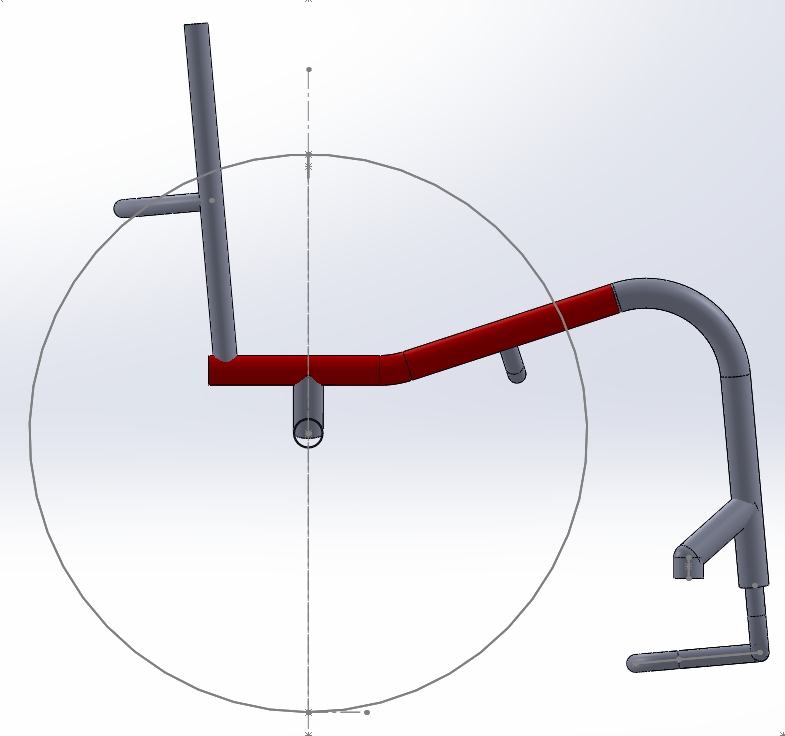

For ergo seating, flat section of seat rails before the bend starts.
U
Push cane height from ground to top of push canes.
V

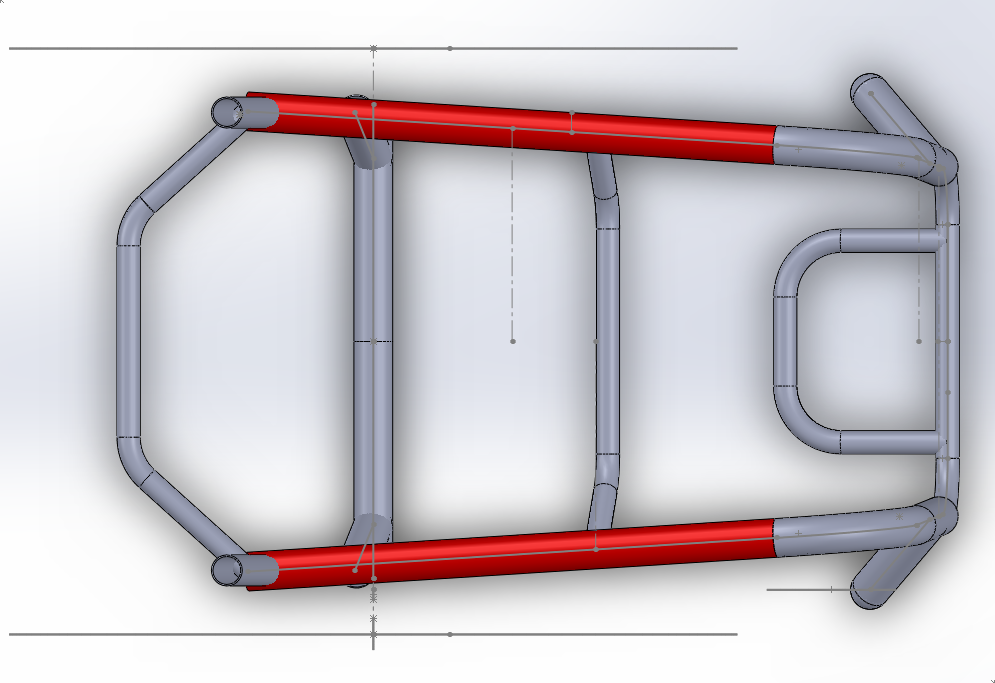

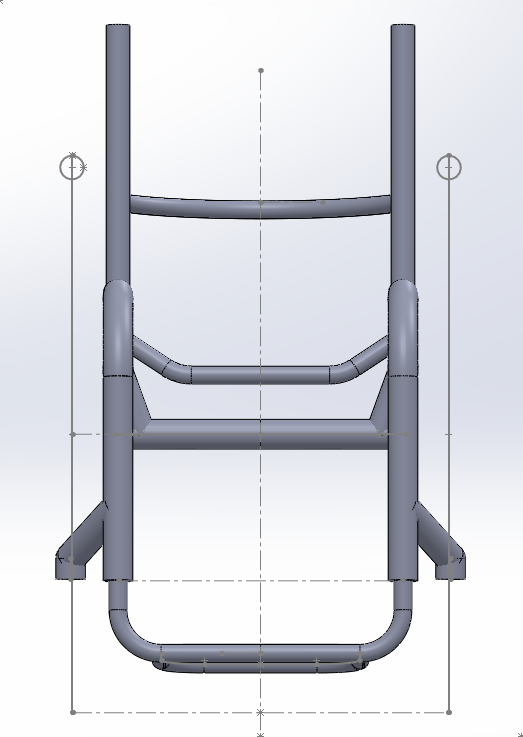

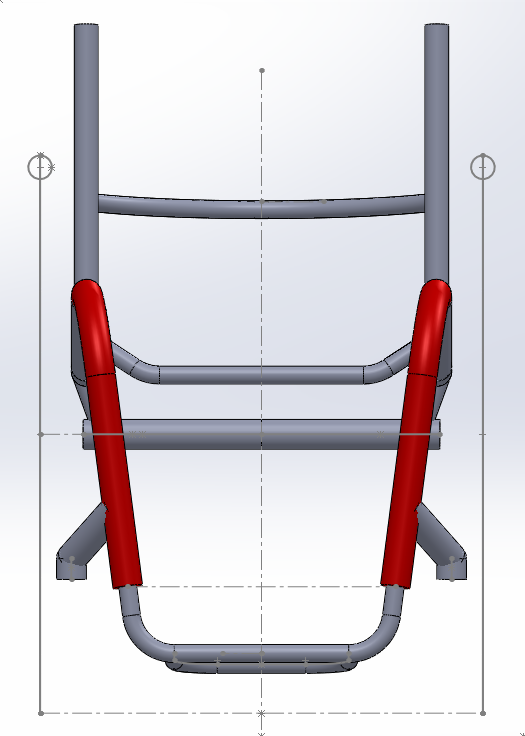

For seat taper, outside left seat tube to outside right seat tube at front of seat sling.
W
For a double foot hoop, distance the heel bar should sit back from the front of the footrest.
